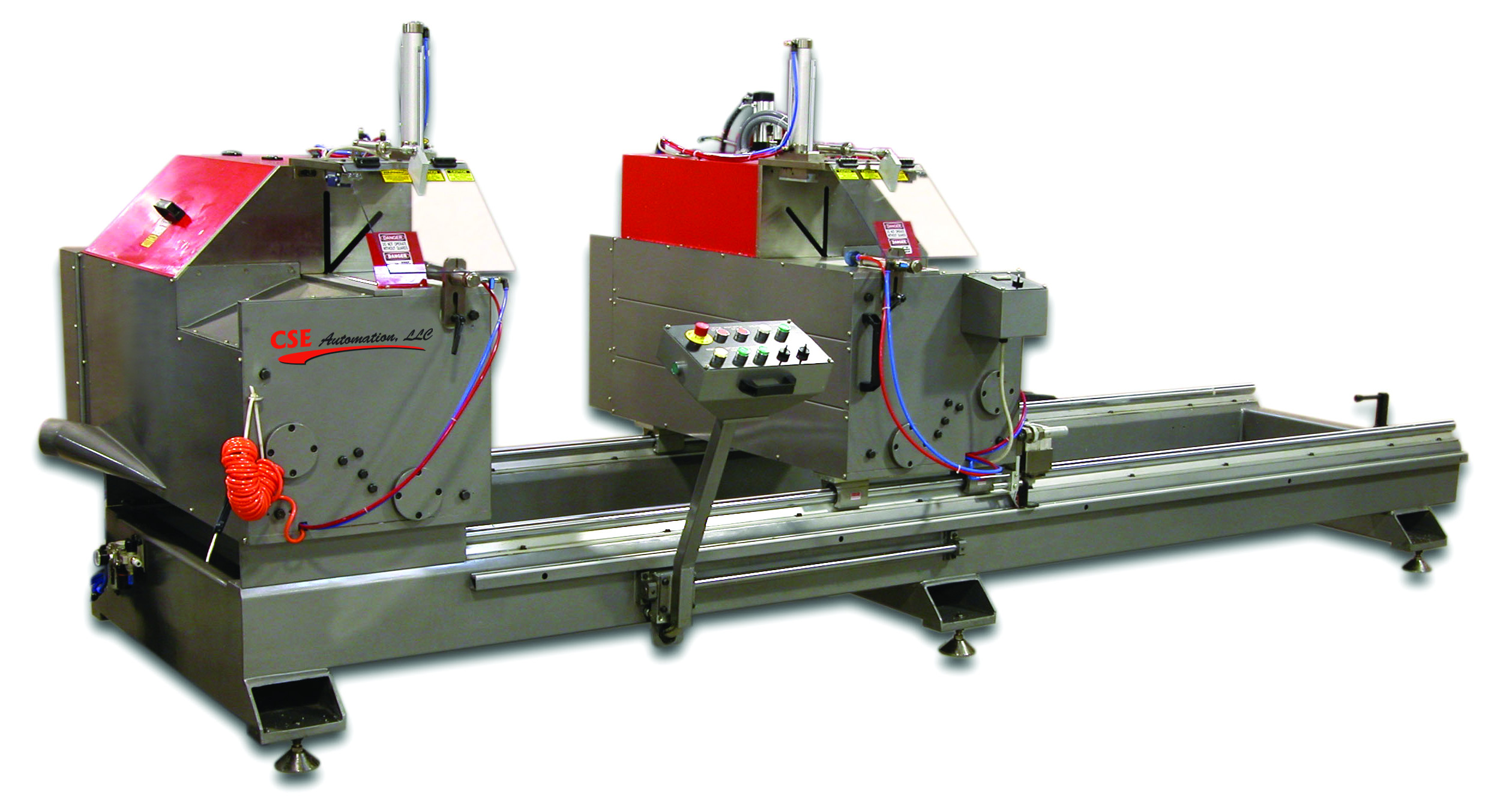

• Automatic back-cut saw for aluminum or PVC profiles

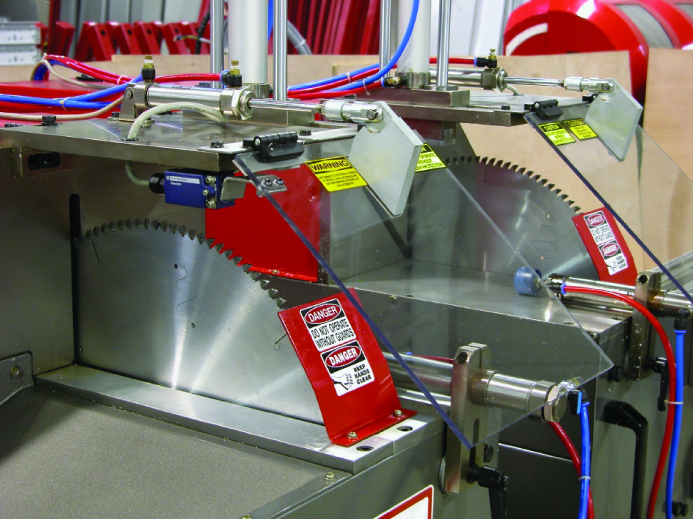

• Two large capacity 500mm (19.7″) diameter carbide-tipped sawblades standard

• Hydro-pneumatic blade feed

• Pneumatic blade adjustment: 90°/90°, 45°/90°, 90°/45°,
  and 45°/45° (blades tilt to the inside)

• Rigid base for easy installation on factory floor

• Left cutting head is fixed; right cutting head travels on precision ground steel rails

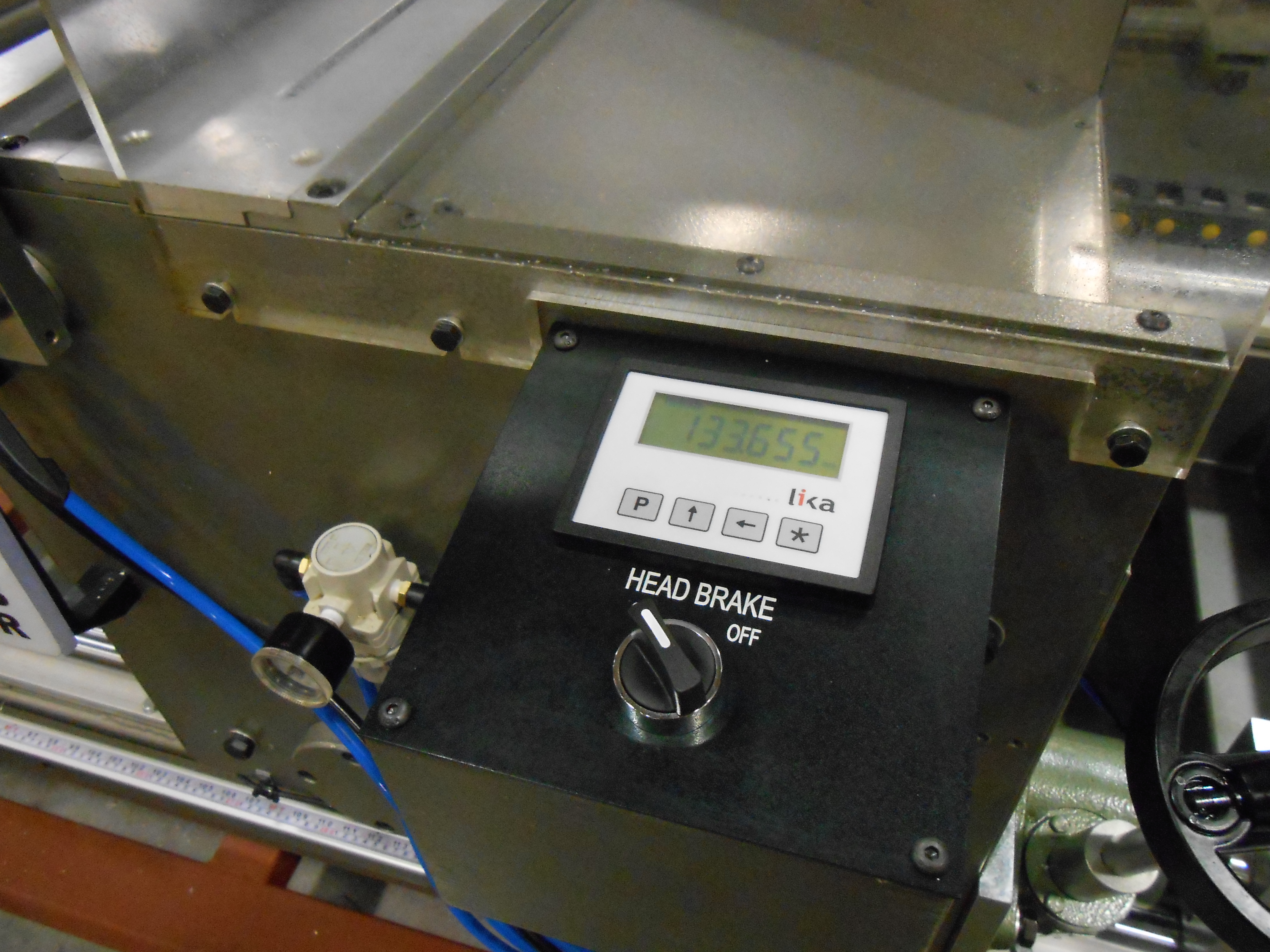

• Digital read-out of cut length (Optional)

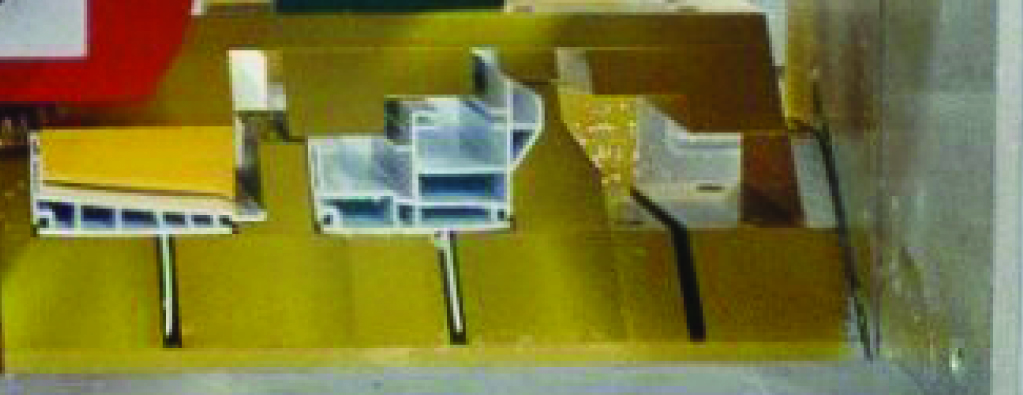

• Custom tooling to properly support profiles (Optional)

DM-500 Double Miter Saw Literature Sheet
