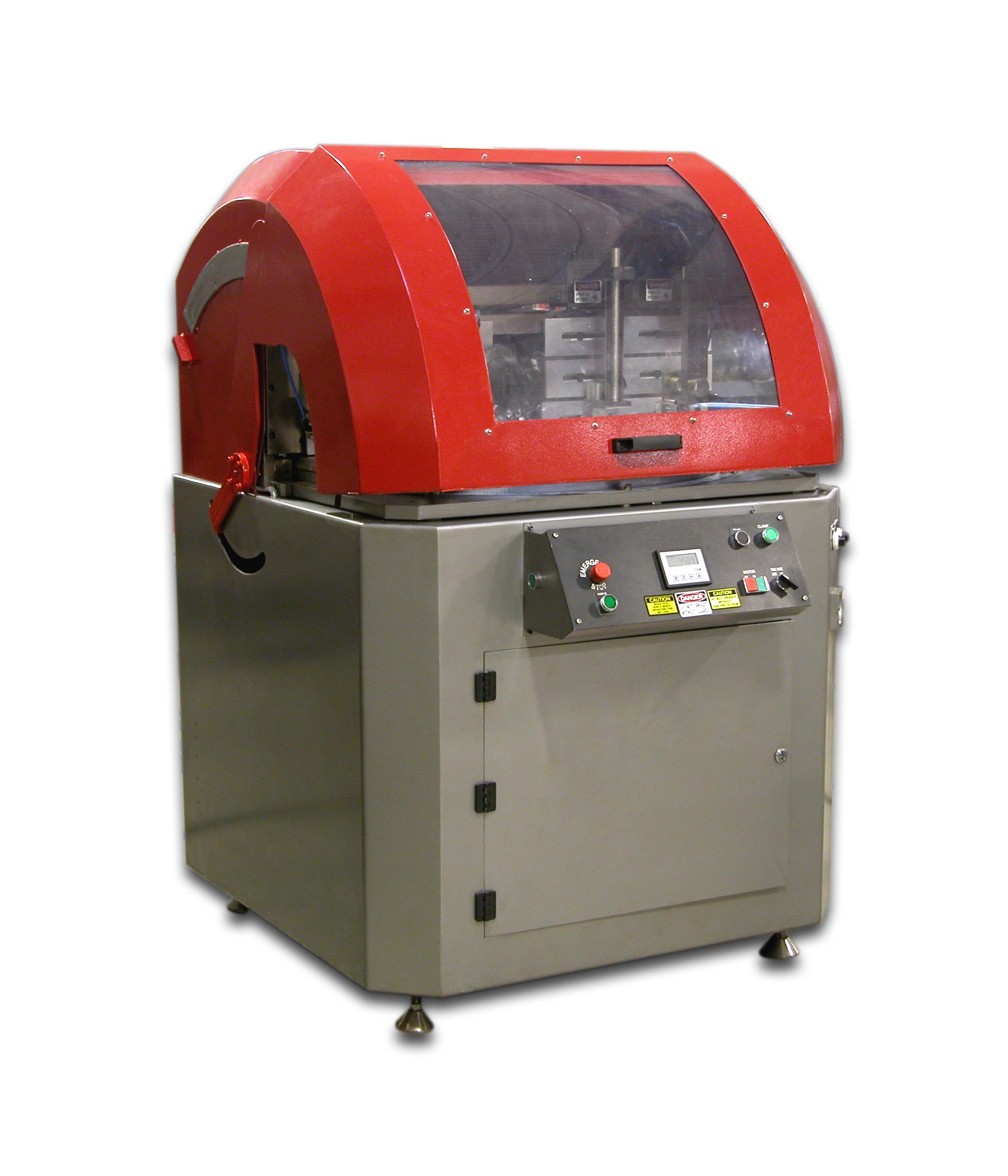

• Large capacity up-cut saw for cutting PVC, aluminum, or wood profiles

• 600 mm (23.6″) diameter blade standard

• Two-hand safety control operation and enclosed cutting area offer additional safety for saw operator

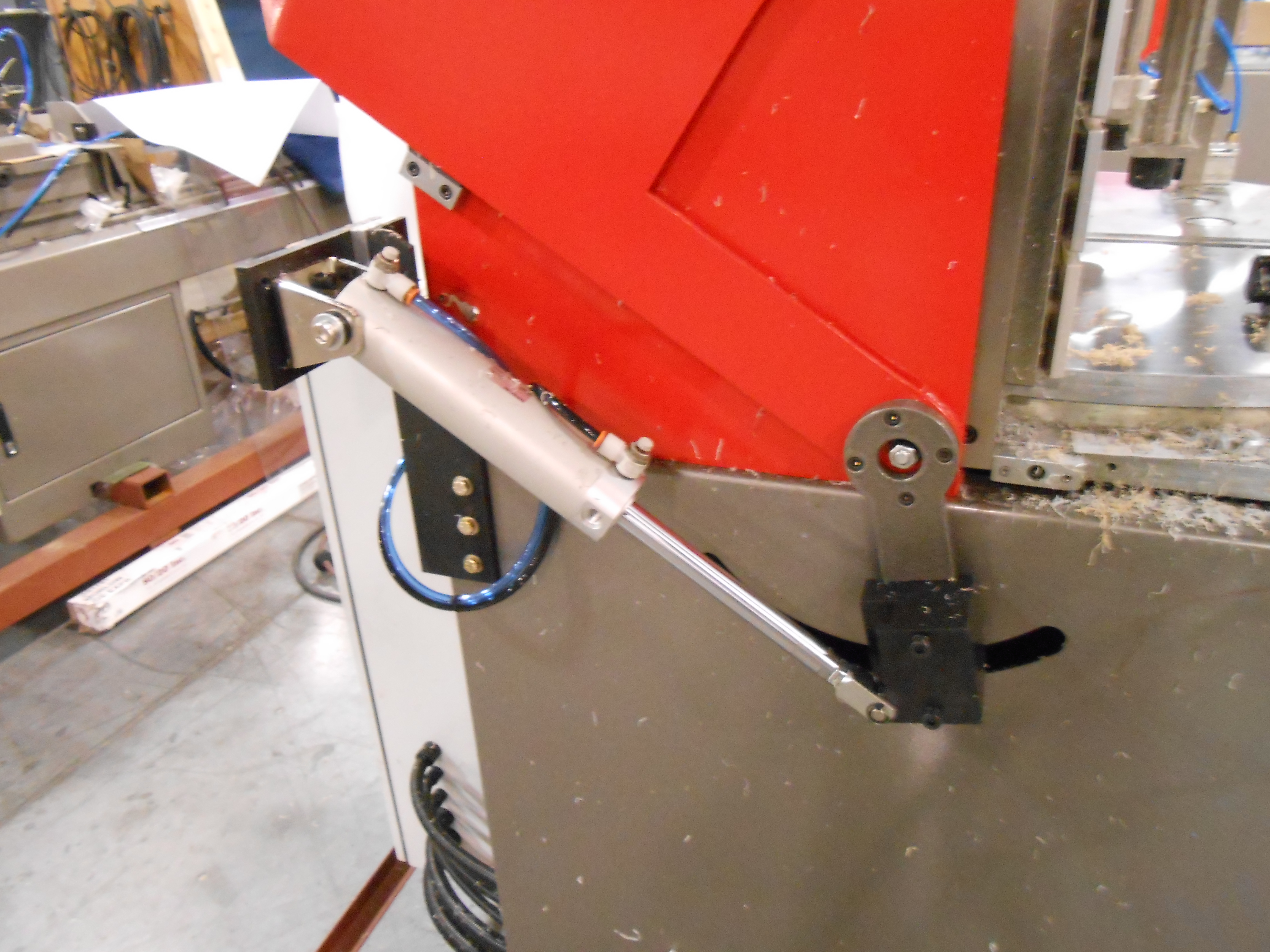

• Hydro-pneumatic blade feed for smooth cut

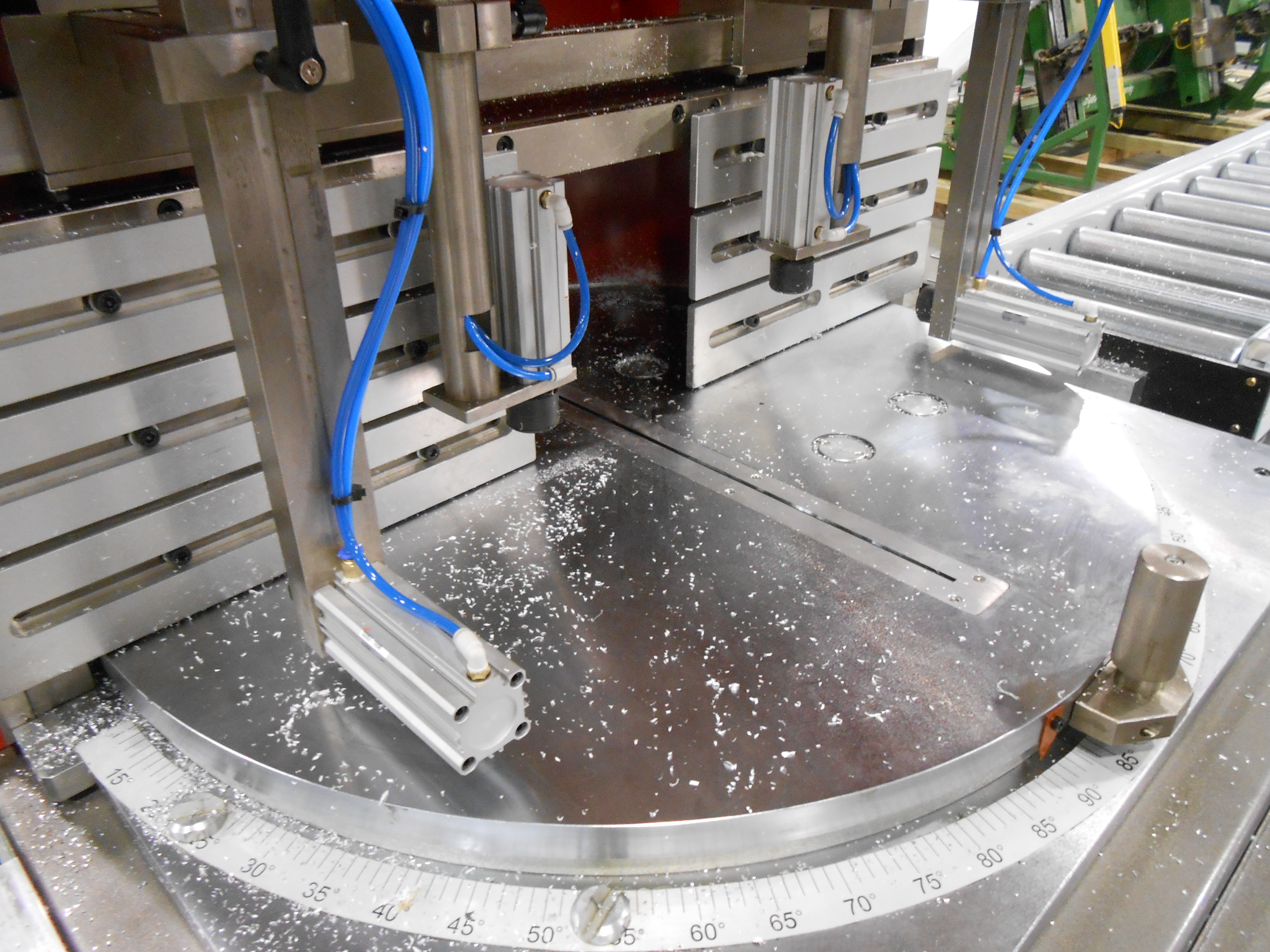

• Sawtable turns for cutting accurate angles from 15° – 90° – 15° (left – center -right)

• Pneumatic lock for turntable miter

• Fixed index stops at common angles: 15° – 45° – 90° – 45° – 15°

• Air service unit with F-R-L (filter-regulator-lubricator

• 5-horsepower heavy duty motor with blade brake

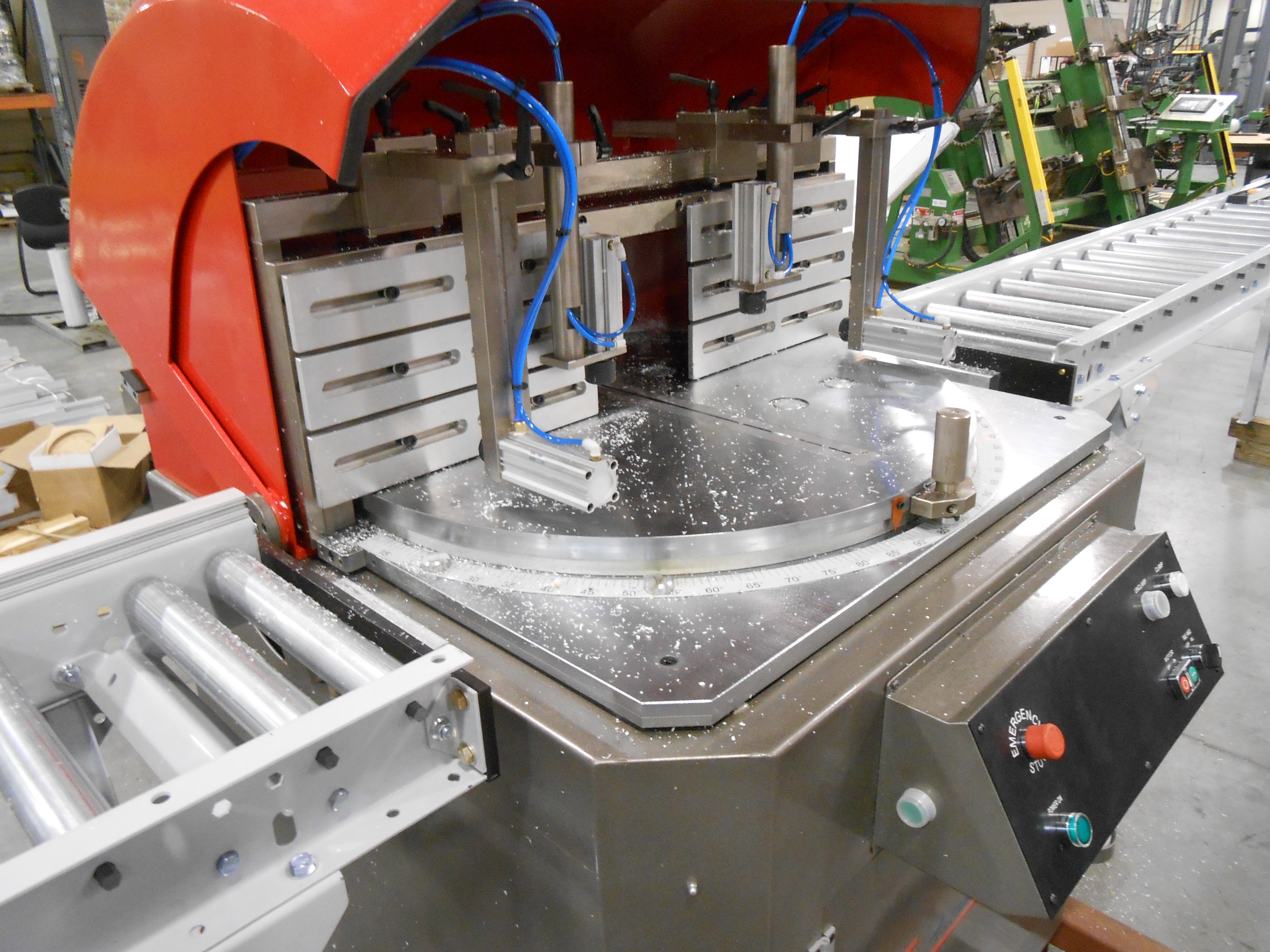

• Two pneumatic vertical clamps and two horizontal clamps standard

• Spraymist coolant system for aluminum cutting applications (Optional)

• Digital read-out of miter and laser-cutting guide(s) (Optional)

• Material in-feed conveyors and length guides

UC-600 Large Capacity Miter Saw Literature Sheet
